Angle Optics

90° deflecting angle optics

Measure workpiece geometry by image processing at various rotational positions

Request a demo Catalog
Angle Optics

Key benefits

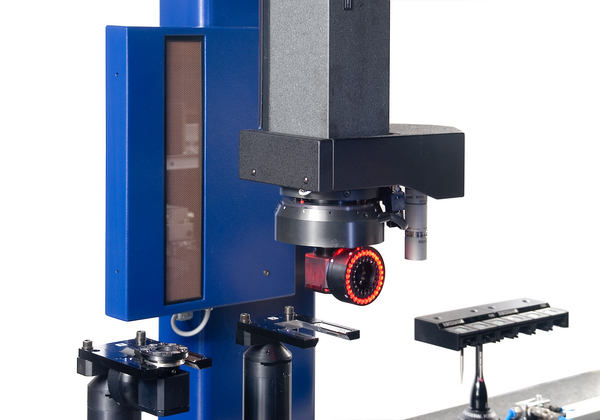

Using the angular optics, you can measure the shape of the "beyond the horizon" optically, from the front, back, side, so you don't have to re-clamp the measurement, which reduces the measurement time.

Key benefits
  • Using the interchangeable device, you can replace angular optics with no errors for optical measurements in different directions.

Compatible equipment

ScopeCheck S WERTH ScopeCheck S Multisensor CMM for small workpieces ScopeCheck FB WERTH ScopeCheck FB Integrated Multisensor CMM for both production-floor and measuring-room use ScopeCheck MB WERTH ScopeCheck MB Multisensor CMM for extra-large workpieces ScopeCheck V WERTH ScopeCheck V Multisensor CMM for precise measurement of rotationally symmetric workpieces StentCheck WERTH StentCheck Multisensor CMM for stent measurement NanoMatic WERTH NanoMatic Coordinate measuring machine for measuring small tools in production environments VideoCheck S WERTH VideoCheck S High-precision Multisensor CMM for small workpieces VideoCheck FB WERTH VideoCheck FB High-precision Multisensor CMM for large workpieces
